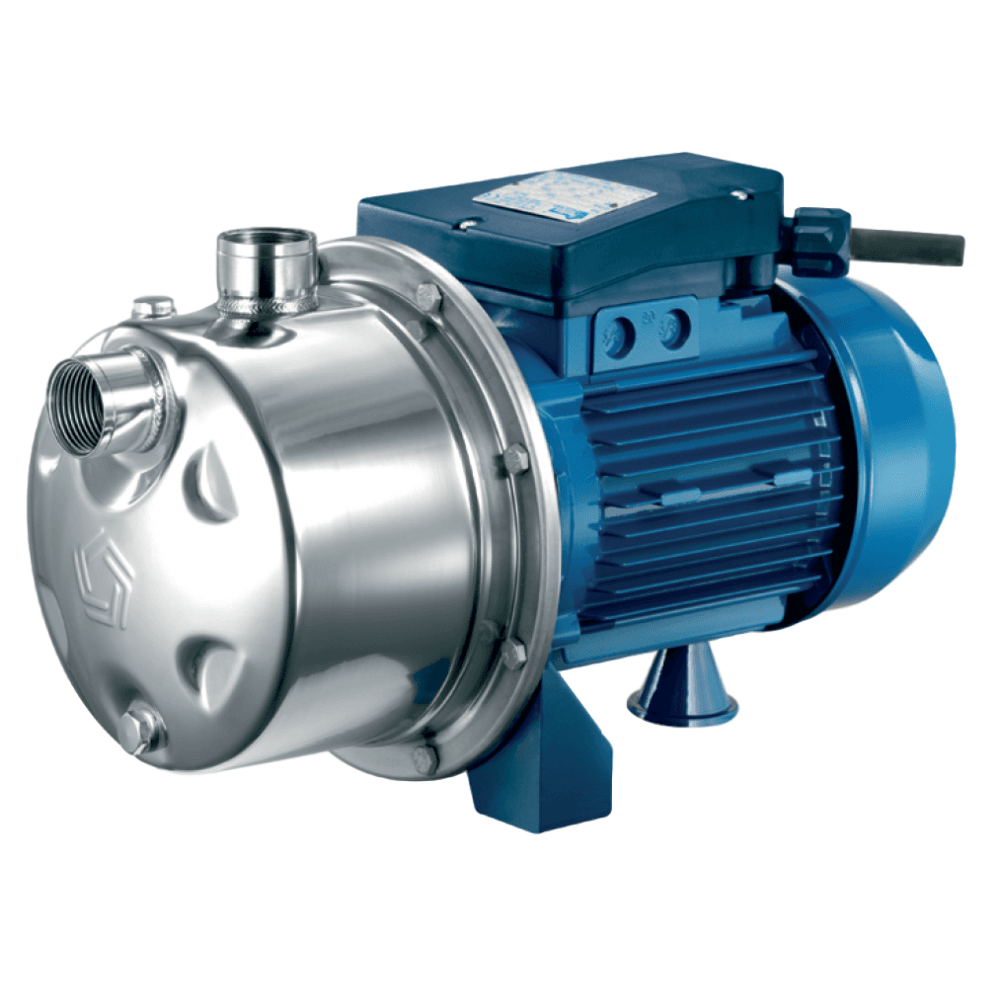

Pentax INOX 80 Self-Priming Stainless Steel Jet Pump - 40 L/min
Specification
| WRAS Approved | No |
|---|---|
| Float Switch | No |
Details
- 110V and 230V options for site or mains use
- Pumps clean water at up to 40 litres per minute
- Maximum 45m head for transfer and boosting duties
- Self-priming design with up to 7m suction lift
- Stainless steel pump body and shaft resist corrosion
- 1" BSP female inlet and outlet connections
The Pentax INOX 80 is a self-priming centrifugal jet pump designed for clean water transfer, pressure boosting and water supply applications. Available in 110V and 230V versions, it provides a choice of power supply to suit construction sites, commercial premises and fixed installations.
Delivering up to 40 litres per minute with a maximum head of 45 metres, the INOX 80 is suitable for applications including water tank transfer, filling and emptying tanks, irrigation systems and site-built booster sets.
Its self-priming design allows the pump to draw water from below its installation level, with a maximum suction lift of up to 7 metres when correctly installed with a suitable foot valve and strainer. This allows the pump to remain accessible above the water source rather than requiring a submersible installation.
The stainless steel pump body and shaft provide corrosion resistance for clean water applications, while the technopolymer impeller, diffuser and venturi help provide reliable water transfer performance.
The INOX 80 is designed for clean water only and should not be used with liquids containing suspended solids or abrasive materials.
Which voltage should I choose?
Choose the 110V INOX 80 where a reduced-voltage supply is required, particularly on construction sites and other working environments using 110V equipment.
Choose the 230V INOX 80 for installations using a standard 230V single-phase electrical supply.
A separate INOX 80 Garden 110V option is also available, supplied with a protective enclosure, on/off switch and 1 metre power cable.
Technical Specification
| Specification | INOX 80 110V | INOX 80 230V |
|---|---|---|
| Maximum flow | 40 L/min | 40 L/min |
| Maximum head | 45m | 45m |
| Maximum suction lift | 7m | 7m |
| Supply | 110V, 50Hz | 230V, 50Hz |
| Input power | 0.79kW | 0.79kW |
| Motor output | 0.59kW | 0.59kW |
| Inlet | 1" BSP female | 1" BSP female |
| Outlet | 1" BSP female | 1" BSP female |
| Pump body | Stainless steel | Stainless steel |
| Dimensions | 199 x 175 x 360mm | 199 x 175 x 360mm |
| Suitable liquid | Clean water | Clean water |
