10000 Litres Direct Pressure Underground Rainwater Harvesting System
This complete 10000 litre direct pressure rainwater harvesting system is ideal for collecting and storing rainwater to use in your home for tasks such as flushing the toilet, washing clothes or washing dishes. The 10000 litre system is suitable for larger installations such as a 5+ bedroom house.
The Direct Pressure system works by supplying water directly to the point of use, for example when a toilet is flushed the pump starts running and rainwater from the tank is pumped to refill the cistern. The pump automatically stops once the pressure in the pipework has been restored. Should the rainwater in your tank reach a low level, a small amount of mains water is sent to the rainwater tank, therefore leaving maximum capacity available for the next rainfall.
This system includes:
- 10000 Litre twin neck polyethylene tank

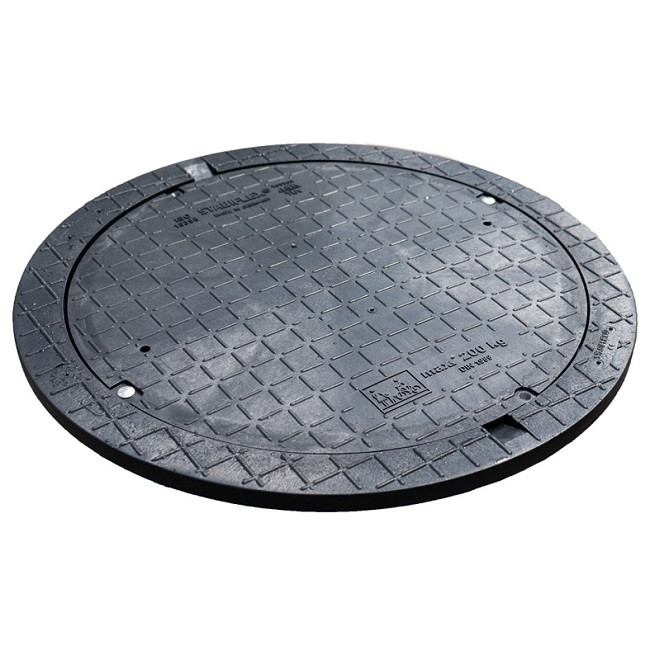

- 2x Pedestrian rated telescopic necks with lids
- Push fit DN 100 drainage connections
- Pre-fitted Compact filter with calming inlet
- Submersible pump
10000 Litre Tank
The tank is manufactured in the UK from virgin Polyethylene and is used mainly for storing harvested rainwater, however it can also be used for storing water from other sources such as springs and wells.
The ribbed design provides added strength and allows for environmentally friendly pea-gravel backfills, eliminating the need for concrete bases and backfills to be used in most installations.
The tank has been designed to ensure optimal strength and is shorter in height compared to other tanks on the market today. This means that a shallower hole is needed to accommodate the tank (this can be as much as 500mm less).
The tank features a large 600mm access which allows for inspection and maintenance of the tank and its contents.

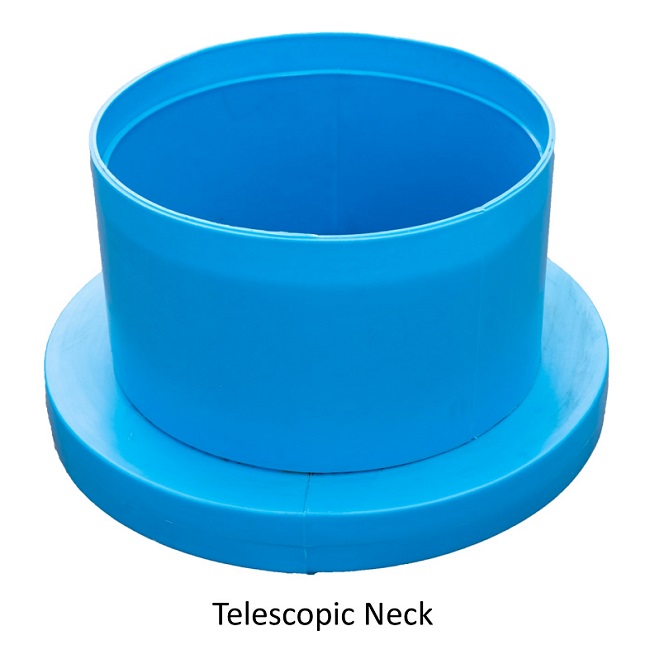

The telescopic neck and lid push fits into the neck of the tank and a rubber seal towards the bottom ensures a tight fit. The telescopic part of the neck can be extended by up to 300mm and can be tilted in any direction by up to 5 degrees.
This system comes with a choice of two pre-fitted filters.
- Compact filter suitable for roof areas up to 150m²
- VF-1 filter suitable for roof areas up to 500m²
The filter removes leaves, grit and other debris from the rainwater passing through. Both filter options require very little maintenance, usually about 3-4 times each year and are very quick and easy to clean with no consumables, just lift, rinse and replace.
Submersible Pump and Controls
The pump delivers approximately 4 bar of pressure and up to 3500 litres/hr of flow and is automatically started at the point of use. The pump also has dry run protection as standard.
The pump is suspended from a pre-fitted hook in the neck of the tank by a stainless steel chain which allows the pump to be lifted out for maintenance. A large handle allows easy lifting when necessary.
Each system is supplied with the filter, calmed inlet and drainage connections pre-fitted inside the tank. Also supplied are all non-standard plumbing fittings, a roll of 32mm MDPE (15 metres), marker tape and ID packs.
Important Delivery Information
Please note the delivery price quoted is for delivery to an address in England or Wales. Deliveries to Scotland, Northern Ireland and offshore islands may incur a surcharge. Please contact us for additional delivery charges to any of these locations.
Delivery is made via a dedicated truck on a 3-5 working day standard service. It is recommended that the tank is off-loaded and moved only by machine and not manually handled.
|Capacity - Litres||10000|
|Capacity - Gallons||2200|
|Length - mm||4770|
|Height - mm||1250|
|Width - mm||2700|
