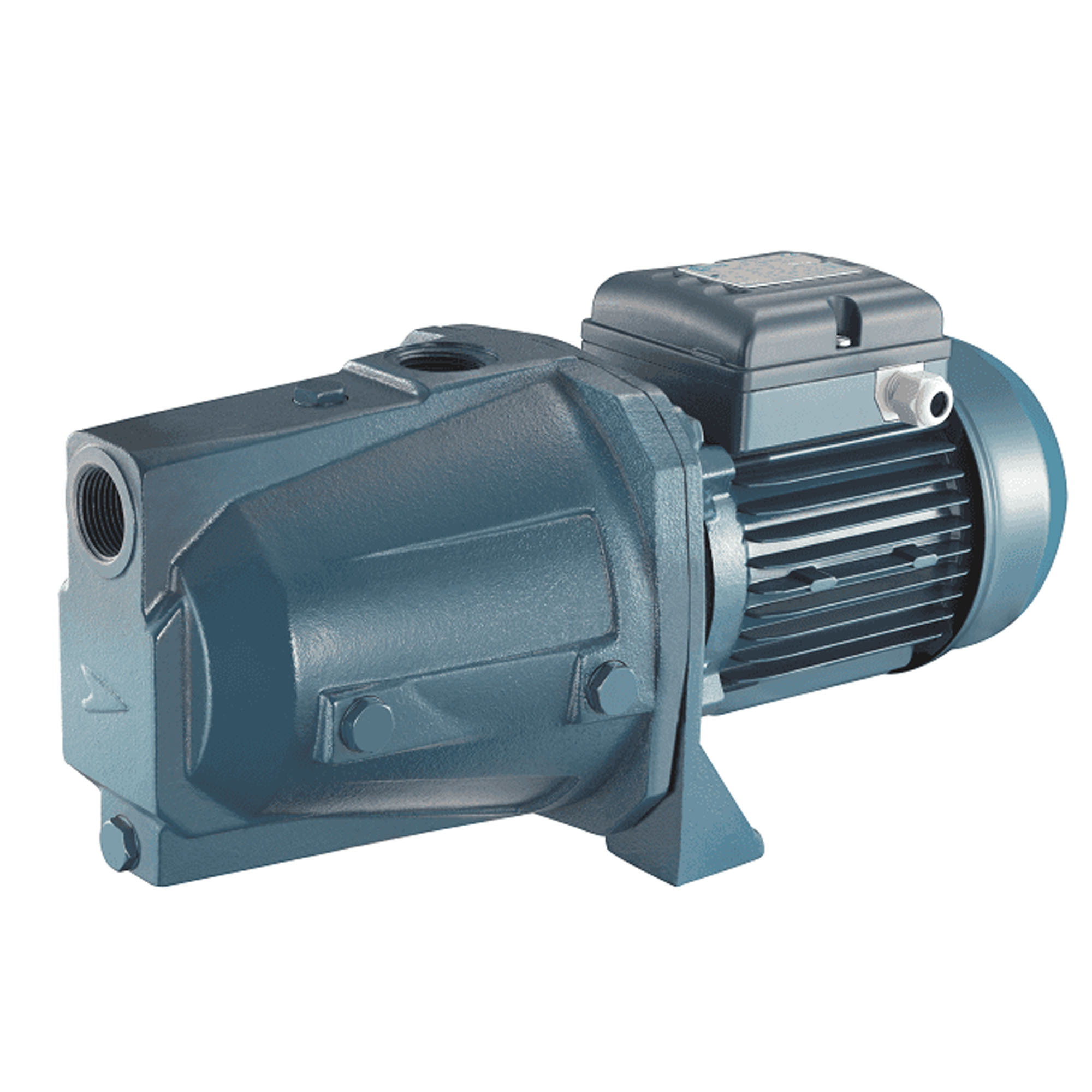

Self-Priming Cast Iron Jet Pump - 230V & 400/415V
Specification
| Weight - kg | 17.8 |
|---|---|
| Length - mm | 425 |
| Width - mm | 182 |
| Height - mm | 190 |
| WRAS Approved | No |
| Float Switch | No |
Details
- 230V and three-phase options available
- Self-priming design for clean water transfer
- Delivers up to 60 litres per minute
- Maximum head of 52 metres
- Cast iron pump body for robust installation
- 1" BSP female suction and delivery connections
The Pentax CAM 100 range of self-priming cast iron jet pumps is designed for clean water transfer, pressure boosting, washing systems and irrigation applications.
Choose from a 230V single-phase CAM 100 or 400V three-phase CAMT 100 to suit the available electrical supply and installation requirements.
Both models deliver up to 60 litres per minute with a maximum head of 52 metres. Their self-priming jet design allows water to be drawn from below the pump installation level, with a maximum suction lift of up to 7 metres when correctly installed with a suitable foot valve.
The pumps feature a robust cast iron pump body, stainless steel motor shaft and technopolymer hydraulic components, providing a practical solution for regular clean water transfer duties in commercial, agricultural and general water management installations.
Typical applications include:
- Water pressure boosting
- Water storage tank transfer
- Tank filling and emptying
- Irrigation and watering systems
- Washing systems
- General clean water transfer
These pumps are designed for clean water and non-aggressive liquids without suspended solids or abrasive material. They should not be used for dirty water, drainage or sewage applications.
Choose the Right Pump
| Pump option | Supply | Maximum flow | Maximum head | Motor output |
|---|---|---|---|---|
| Pentax CAM 100 | 230V single-phase | 60 L/min | 52m | 0.74kW |
| Pentax CAMT 100 | 400V three-phase | 60 L/min | 52m | 0.74kW |
The 230V Pentax CAM 100 is designed for standard single-phase installations.
The CAMT 100 is the three-phase version for commercial and industrial installations with a suitable three-phase electrical supply.
Technical Specification
| Specification | CAM 100 230V | CAMT 100 Three-Phase |
|---|---|---|
| Product code | 1000-0135 | 1000-0140 |
| Supply | 230V, 50Hz | 400V, 50Hz three-phase |
| Maximum flow | 60 L/min | 60 L/min |
| Maximum head | 52m | 52m |
| Maximum suction lift | 7m | 7m |
| Motor output P2 | 0.74kW / 1HP | 0.74kW / 1HP |
| Input power P1 | 1.02kW | 1.05kW |
| Rated current | 4.7A | 2.3A |
| Inlet | 1" BSP | 1" BSP |
| Outlet | 1" BSP | 1" BSP |
| Pump body | Cast iron | Cast iron |
| Motor shaft | Stainless steel AISI 416 | Stainless steel AISI 416 |
| Impeller | Noryl | Noryl |
| Mechanical seal | Ceramic / graphite | Ceramic / graphite |
| Maximum liquid temperature | 50°C | 50°C |
| Protection rating | IP44 | IP44 |
| Insulation class | F | F |
| Dimensions | 420 x 180 x 195mm | 420 x 180 x 195mm |
| Weight | Approx. 17kg | Approx. 17kg |
