100 Litre Wheel Arch Tank

SKU
T100WBK4I

Available Options (Prices ex. VAT)

£177.24 £147.70

Delivery

Lead Time
Next day delivery is available. 3-5 working days
Delivery Cost
£26.5 + VAT

Specification

More Information
Length - mm 1100
Width - mm 260
Height - mm 680
Weight - kg 11
Capacity - Litres 100

Details

  • Utilises wasted space over the wheel arches, keeping your vehicle bed accessible
  • Great for pickup trucks, vans or even campervan conversions thanks to low-profile design
  • Simple installation thanks to moulded-in M8 screw inserts
  • Suitable for the storage of potable drinking water, wastewater, and even certain chemicals
  • Black polymer material helps to shield the contents from UV and reduce the chance of algae growth


Our 100 litre wheel arch tank is an excellent utility to have in your van or pickup allowing you to bring an ample supply of drinking water for cleaning, drinking, cooking and more! It is also a brilliant solution to low-profile water storage in campervan conversions.

The profile of this tank really helps you to take advantage of that empty space above your wheel arches. Minimising the amount of space taken up in the bed of your vehicle. If you can’t use the majority of your vehicle's bed, are you really getting the most out of it?

The black polymer construction also helps to minimise the amount of light entering the tank, reducing the chance of algae developing in the tank when exposed to UV light. Keeping your water fresh for longer.

Not only is the tank incredibly efficient in terms of capacity and profile, but it is also simple to mount thanks to the built-in M8 screw inserts. Saving time and trouble when used with our fitting kit. Please note that this tank does not have any pre-fit outlets or inlets to allow you to customise the tank to perfectly suit your needs.


Details of this tank’s parts kits can be found below.

Submersible pump kit

This kit can be used to allow a submersible pump to be connected through the lid.

Contents:

1 x ½” BSP 90° bulkhead hose tail 11-13mm

1 x ½” BSP back nut

1 x ½” BSP gasket

1 x cable gland

1 x 10 metre roll PTFE tape



Plumbing kit

This kit has all the fittings required for an outlet, inlet, and vent hoses.

Contents:

1 x ½” BSP x 13mm hose tail

2 x ½” BSP 90° hose tail

3 x ½” BSP gasket

3 x ½” BSP back nut

1 x 10 metre roll PTFE tape

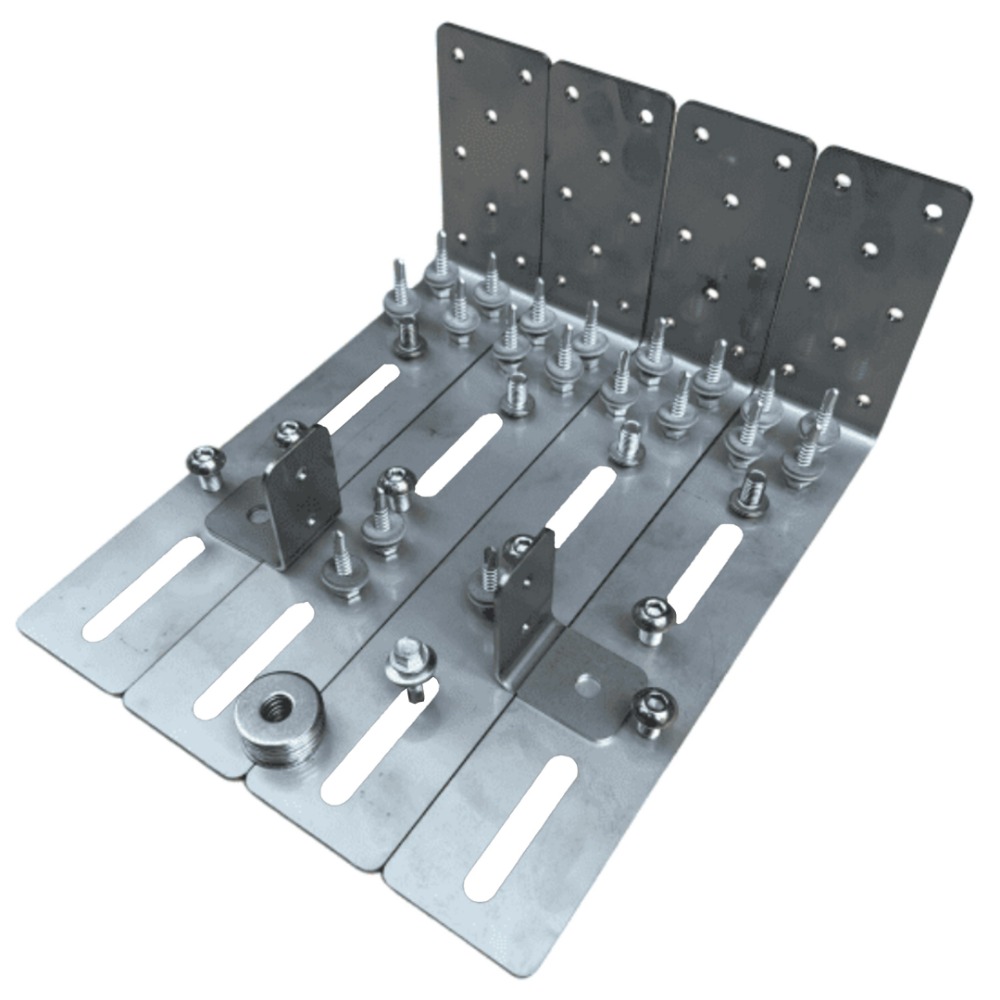

Fitting kit

This kit allows you to mount the wheel arch tank to the wall of your vehicle.

Contents:

4 x Wheel Arch 100 L Bracket (240mm x 108mm x 50mm)

2 x Wheel Arch 100 L Bracket (50mm x 40mm x 30mm)

10 x M8 x 12mm socket button head stainless steel

10 x M8 x 25mm washer stainless steel

20 x 5.5 x 26 Tek Screws
