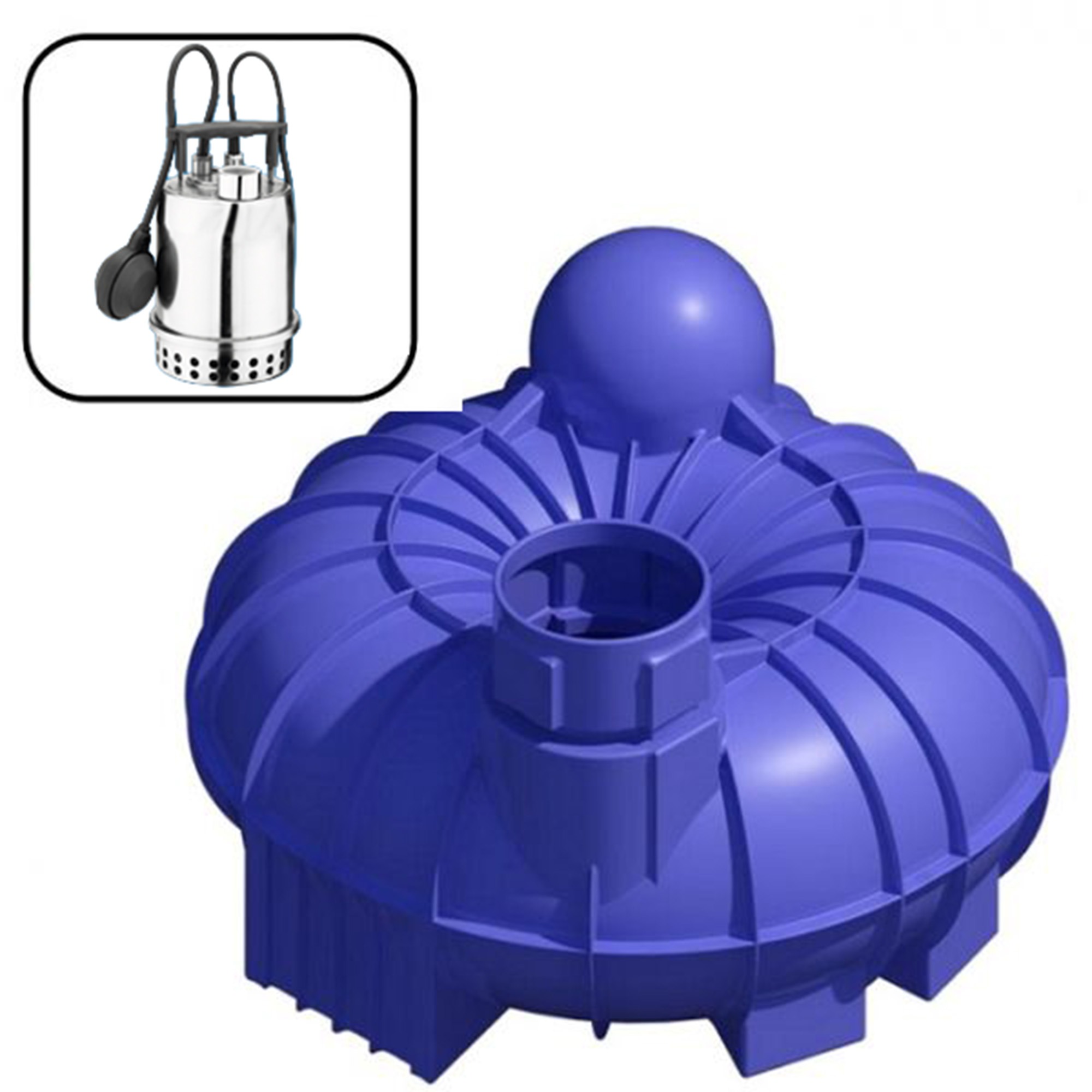

5200 Litres Premium Underground Rainwater Harvesting Garden System

SKU
WAB.5200.P
£4,734.00 £3,945.00

Delivery

Lead Time
Next day delivery is available. 4-5 weeks
Delivery From
Free UK Mainland Delivery

Specification

More Information
Length - mm 2700
Width - mm 2700
Height - mm 1725
Capacity - Litres 5200
Capacity - Gallons 1143
Suitable for Drinking Water (Potable) No
WRAS Approved No
Construction Material Polyethylene

Details

This 5200 Litres Premium Underground Rainwater Harvesting Garden System has all of the features of the Economy system but adds several extras to increase usability and efficiency. The garden system is ideal for collecting and storing rainwater to use in the garden for a variety of applications. These include:

  • Garden irrigation
  • Washing the car
  • Cleaning windows
  • Power washing driveways and patios
  • Outside taps and hosepipes

The 5200 litre system is suitable for medium sized applications and will provide an excellent supply of water for use in your garden.

This system includes:

  • 5200 litre polyethylene tank
  • Pedestrian rated telescopic neck and lid
  • P Series stainless steel submersible pump with float switch
  • Rodent guard
  • Calmed inlet drainage pack with rainwater filter
  • Pump turret
  • Pump lifting chain
  • Floating intake

5200 Litre Tank

The 5200 litre tank is rotationally moulded from high strength polyethylene and complies with EU and UK regulations. Designed with strength in mind, it is shorter in height compared to other tanks on the market today. This means that a shallower hole is needed to accommodate the tank, and this can be by as much as 500mm less.

Features:

  • 5200 Litre / 1143 Gallons capacity
  • Made in the UK
  • Made from high strength polyethylene
  • Ribbed and curved design provides added strength and efficiency
  • Low profile means a shallower dig is required
  • Large 600mm diameter access allows inspection and maintenance
  • Easy to install with environmentally friendly pea gravel backfill
  • Ideal for areas with a high water table
  • 10 year warranty

The ribbed design provides added strength and efficiency, while also allowing for an environmentally friendly pea-gravel backfill, eliminating the need for a time consuming and high cost concrete base and backfill to be used. The curved element of the design also enables all water, even from the bottom of the tank to be pumped out.

These tanks are amongst the most dependable on the market and as such are supplied with an industry leading 10 year warranty. With the correct installation and general on-going care, these tanks have a long lifetime ahead of them with very little or no maintenance required.

In-Tank Filter with calmed inlet

As standard, a PF filter is pre-installed into the neck of the tank. The filter removes leaves, grit and other debris from the rainwater passing through. The filter requires very little maintenance, usually about 3-4 times each year and is very quick and easy to clean with no consumables, just lift, rinse and replace.

The calmed inlet slows down the speed the water enters the tank and introduces the water into the lower part of the tank. As a result of this controlled entry, the water does not disturb any sediment at the base and replenishes the supply of oxygenated water throughout the tank, not solely at the top. This keeps the water inside the tank fresher for longer.

Submersible Pump

This system is supplied with a P Series stainless steel submersible pump which sits in the bottom of the tank and has sufficient power to service most garden based water requirements such as hoses and irrigation.

The pump combines with a float switch to help protect the pump from running dry and potentially causing damage.

Pump Lifting Chain

This allows you to quickly and easily pull the pump up towards the top of the tank for maintenance or inspection purposes.

Pump Turret

The pump turret is a flexible plastic connection between the pump and access port which allows smooth flow of the pumped water out towards its point of use.

Floating Intake

A floating intake ensures that no water from either the surface or bottom of the tank is taken into the pump. This means that only clean water passes through the system and is pumped to the point of use.

Rodent Guard

The rodent guard protects the water inside the tank from rodents and large debris which could contaminate the water by entering via the overflow.

Important Delivery Information

Please note the price of this tank includes delivery to an address in England or Wales. Deliveries to Scotland, Northern Ireland and offshore islands may incur a surcharge. Please contact us for delivery charges to any of these locations.

The delivery will be unloaded from the vehicle by the delivery personnel; however, responsibility then passes on to the customer to move the tank into position.
