650 Litres Baffled Water Tank - Upright

In stock
SKU
WDT650UNA8VS

Available Options (Prices ex. VAT)

£216.00 £180.00

Delivery

Lead Time
1-3 working days.
Delivery Cost
£47.50 + VAT

Specification

More Information
Length - mm 1250
Width - mm 575
Height - mm 1010
Weight - kg 42
Capacity - Litres 650
Capacity - Gallons 143
Suitable for Drinking Water (Potable) Yes
WRAS Approved No
Lid Diameter - Inches 8
Outlet 1″ BSP Female
Construction Material Food Grade Polyethylene
Height With Turret/Lid - mm 1070

Details

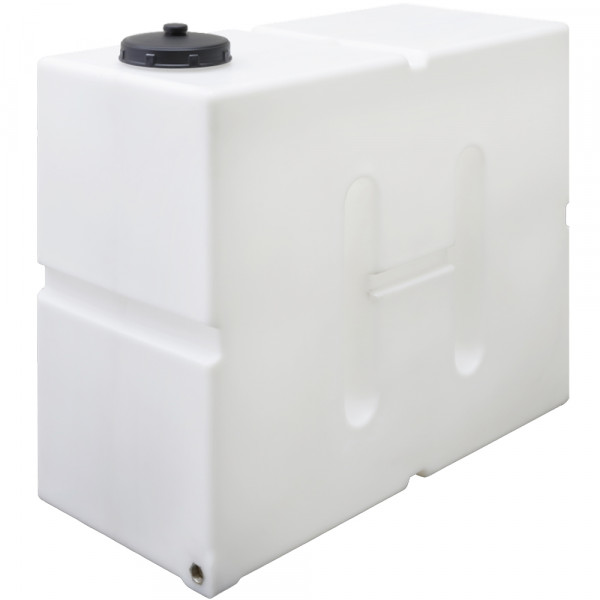

This 650 litre tank is manufactured from tough and durable polyethylene and offers a practical solution for the storage and transportation of a wide range of liquids including drinking water. The tank is semi-translucent which is ideal for seeing the water level inside the tank and is suitable for storing liquids up to 70°c.

The tank is supplied with an 8" vented cap and 1" Female BSP outlet as standard.

When it comes to transporting large volumes of liquid in vehicles, road safety is a big concern. The weight of the liquid inside the tank can add hundreds of kilograms to the laden weight of the vehicle, having a negative impact on the way the vehicle handles, especially when cornering and affecting stopping distances. The baffle in this tank is designed to prevent water surge by providing added stability and allowing you to transport liquid safely.

Fusion Welded Sockets

If you require the tank outlet in a different position to the standard location, a fusion welded socket can be added and this allows flexible positioning of inlets and outlets on the tank. Multiple extra sockets can be added - prices of the sockets can be found in the downloadable technical data sheet titled ‘Fusion Welded Sockets - 650 Litre Upright Baffled Tank’.

The sockets are available in the following sizes:

  • ½ inch BSP Female
  • ¾ inch BSP Female
  • 1 inch BSP Female
  • 1 ¼ inch BSP Female
  • 1 ½ inch BSP Female
  • 2 inch BSP Female
  • ¾ inch BSP Male
  • 1 inch BSP Male
  • 1 ½ inch BSP Male

All you need to do is download the technical data sheet and mark the position you require the inlet/outlet(s), email this to us at sales@directwatertanks.co.uk and then give us a call on 01777 237933 to place your order.

Optional Tap Kits

A choice of two optional tap kits are available for this tank.

Tap Kit 4 includes:

  • ½” Lever tap
  • ½” Brass nipple
  • 1” to ½” Brass reducer
  • 12mm Brass straight hosetail
  • 1 Roll of PTFE tape
  • Hose clip

Tap Kit 6 includes:

  • ½” Bib tap with 12mm hosetail
  • 1” to ½” Brass reducer
  • Hose clip
  • 1 Roll of PTFE tape

If you require one of the optional tap kits, please select the kit you require from the drop down box.

Please Note: Black tanks are manufactured to order and this will add to the delivery time.
